This guide helps you verify that your LlamaCloud deployment on Azure is working correctly. Follow these steps after completing the Azure Setup Guide.

Step 1: Verify Pod Status

Check that all LlamaCloud pods are running correctly:

# Check all pods are running
kubectl get pods -n llamacloud

# Expected output should show all pods as Running:
llamacloud-64f468d5cf-sqjq6                 1/1     Running
llamacloud-layout-6d97b84c58-rld8x          1/1     Running
llamacloud-ocr-5cc459bdd-99xgt              1/1     Running
llamacloud-operator-5d4c58b854-dwnjk        1/1     Running
llamacloud-parse-7ffbc786b5-r98w2           1/1     Running
llamacloud-telemetry-5fc9ff8c67-fv8xj       1/1     Running
llamacloud-web-b88d95588-rprhc              1/1     Running
llamacloud-worker-58b95ccc6f-vqmgx          1/1     Running
llamacloud-s3proxy-xxx                      1/1     Running

If any pods are not in Running state, check the logs:

kubectl logs deployment/llamacloud-telemetry -n llamacloud

Step 2: Access UI and Test Authentication

Access the LlamaCloud UI

Port Forward (for testing)

kubectl -n llamacloud port-forward svc/llamacloud-web 3000:80

Open http://localhost:3000 in your browser.

Production Access (if ingress configured) If you have an ingress controller set up, access your configured domain.

Test Authentication

1. Navigate to LlamaCloud UI
2. Click Sign In - should redirect to Microsoft Entra ID
3. Complete OIDC flow - authenticate with your Microsoft Entra ID credentials
4. Verify successful login - should return to LlamaCloud dashboard

Step 3: Access Admin UI

After successful authentication, verify admin functionality:

1. Navigate to Admin Settings - Look for the admin/settings section in the UI
2. Check License Status - Verify your LlamaCloud license shows as “Active”
3. Review LLM Availability - Expand the LLM section to see provider and model status
4. Check File Storage - Expand to verify all required buckets show as “Available”
5. Review Feature Availability - Check that Parse, Extract, and Chat features work with your models

The admin UI displays three main expandable sections:

License Status

• License validity and expiration date
• Version information of your deployment
• Renewal reminders if license is expiring

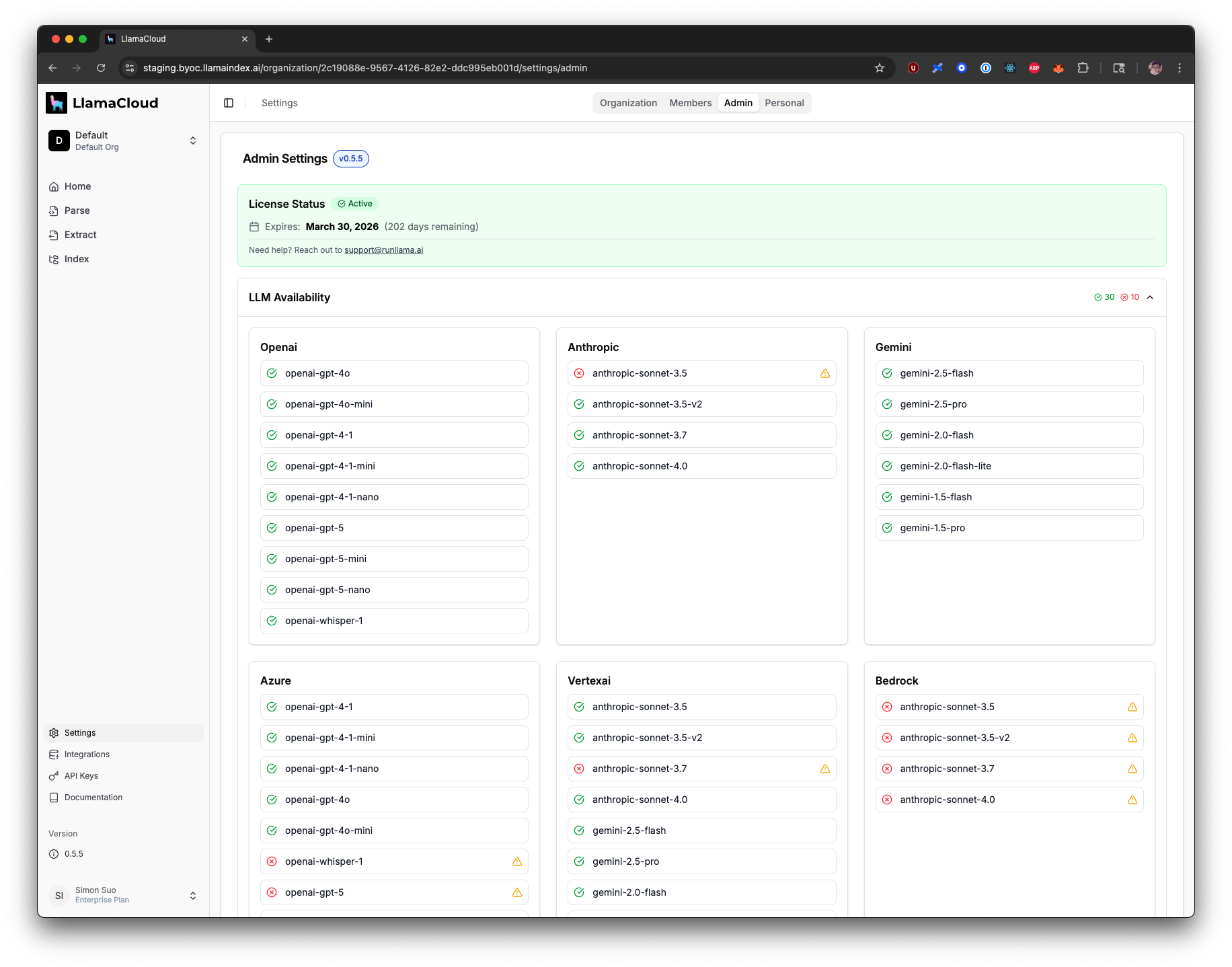

LLM Availability

• Provider status (OpenAI, Anthropic, etc.)
• Model validation with ✅ for working models, ❌ for failed models
• Error messages for any model connectivity issues

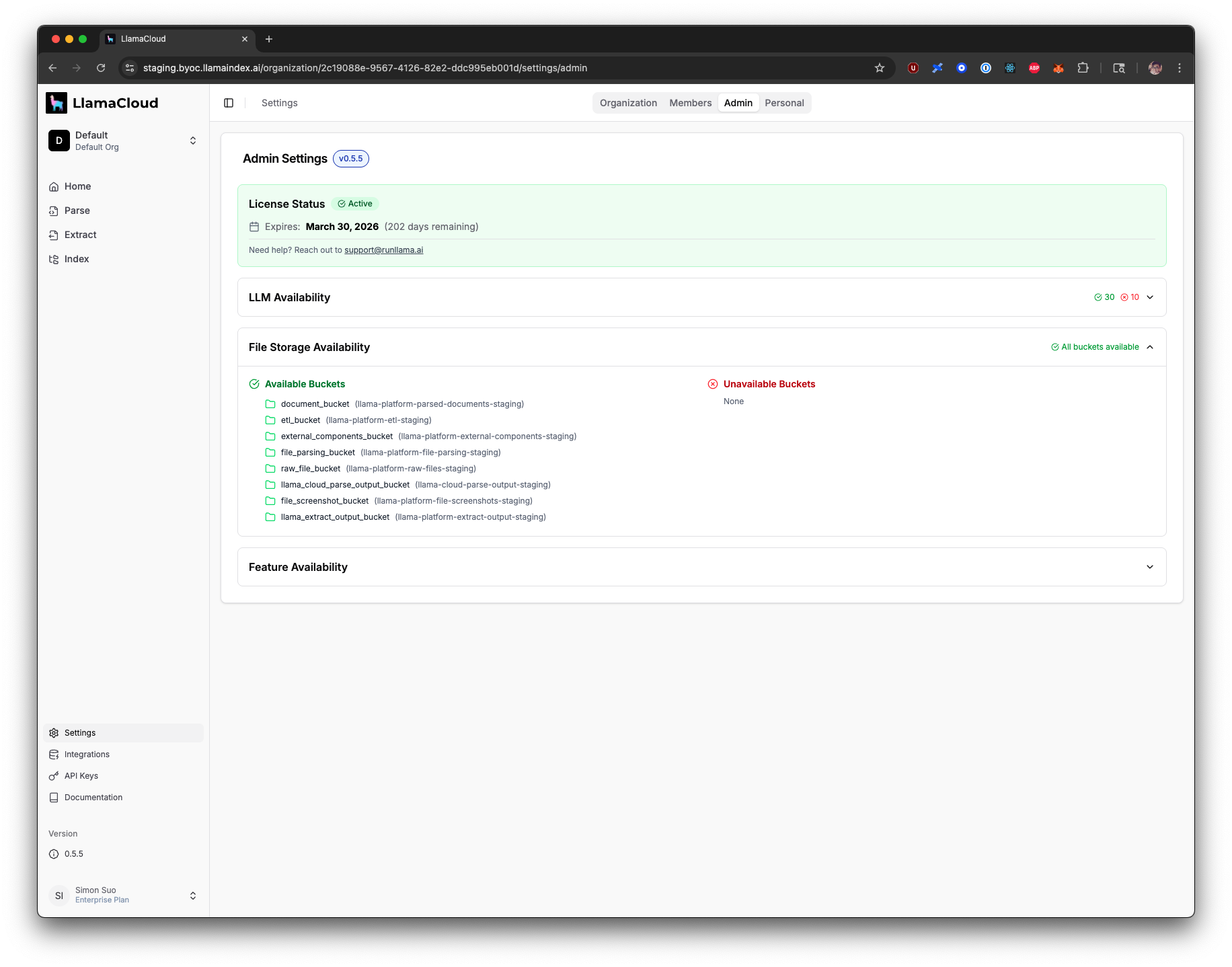

File Storage Availability

• Available buckets - Should show all 8 required containers:
  • llama-platform-parsed-documents
  • llama-platform-etl
  • llama-platform-external-components
  • llama-platform-file-parsing
  • llama-platform-raw-files
  • llama-cloud-parse-output
  • llama-platform-file-screenshots
  • llama-platform-extract-output
• Unavailable buckets - Should be empty if properly configured

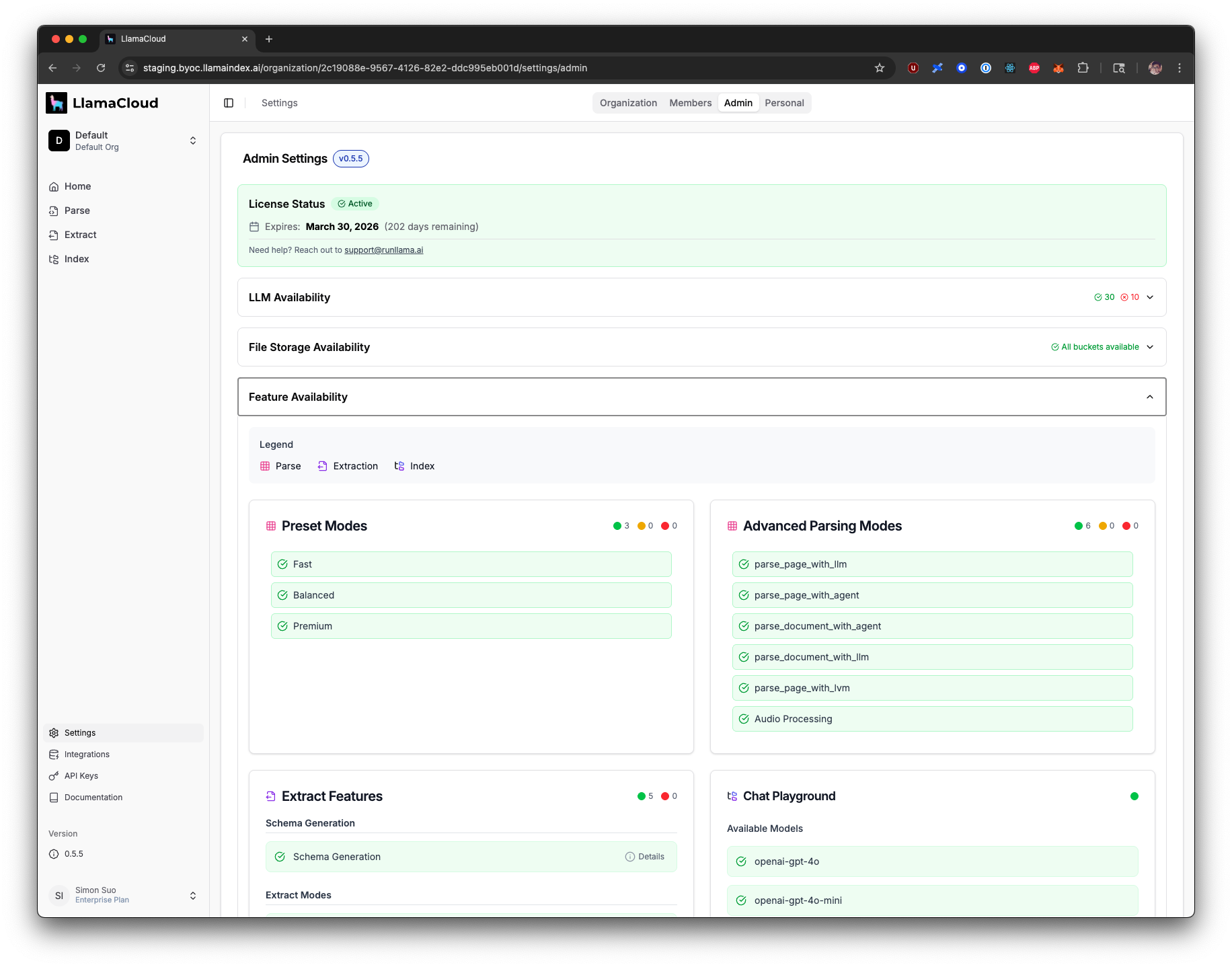

Feature Availability

• Parse Features - Shows preset modes (Fast, Balanced, Premium) and advanced parsing modes
• Extract Features - Shows schema generation and extraction mode availability
• Chat Playground - Shows available models for chat functionality

Step 4: Test Basic Product Functionality

Test Document Parsing

1. Navigate to the Parse product in the LlamaCloud UI
2. Keep the default setting (Cost-effective mode)
3. Upload a test PDF document
4. Verify the parsing job completes successfully

Validation Checklist

Use this checklist to ensure your deployment is fully validated:

• All pods are in Running state
• Frontend is accessible via browser
• Microsoft Entra ID authentication works
• Admin UI license status shows as “Active”
• LLM models show ✅ status in admin UI
• All 8 required storage buckets show as “Available”
• Feature availability shows required capabilities working
• Can navigate to Parse product
• Can upload PDF documents
• Document parsing job completes successfully

Next Steps

If you encounter any issues during validation, see the Troubleshooting Guide for solutions to common problems.

Once validation is complete, your Azure LlamaCloud deployment is ready for use!
